Upgrade Efficiency. Update Design

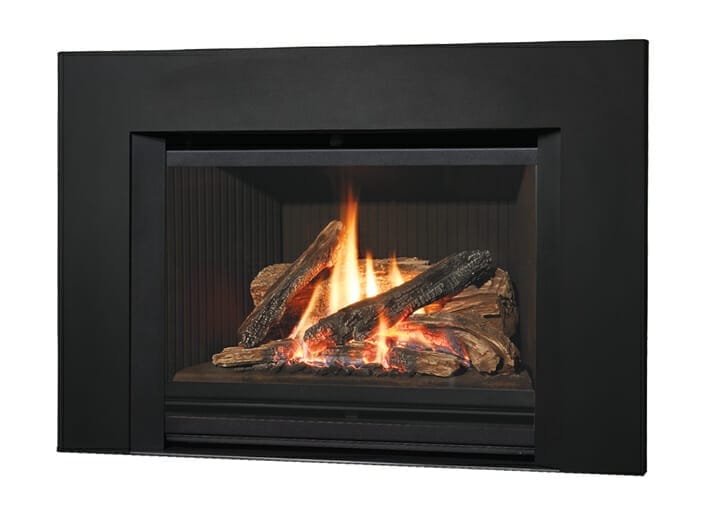

Introducing the Legend G4 Insert, our latest addition to the Valor insert family. Considered the “big brother” to our highly successful Legend G3 Insert, the G4 is a synthesis of distinct design and efficient, radiant heating performance.
The process of updating your living space aesthetics should include a significant upgrade in fireplace technology and efficiency. The Legend G4 increases your home efficiency, provides ease of use and effectively updates the design of your home.
Gallery
Features
[row]
[col span=”1/2″ ]
- Programmable ValorStat Plus remote
Visit the Valor Remote Overview page - Heats without electricity
Operates even during a power outage - Standard safety barrier screen
High quality ceramic glass window - Direct vent installation
Installs practically anywhere you want - Insert approved
Install as an Insert fireplace
[/col]
[col span=”1/2″ ]
- Valor Wall Mount Switch (1265WSK)
Turn your pilot light on & off with the touch of a switch - Heats without the need for a fan
A quieter fireplace experience - Valor Dynamic Restrictor Technology
Automatically adjust secondary combustion air - ValorComfort
Limited lifetime warranty program
[/col]
[/row]
G4 Fireplace Components
ENGINES
| 780JN | 780 G4 – Stainless Burner – NG (Requires Firebed below) |
| 780JP | 780 G4 – Stainless Burner – LP (Requires Firebed below) |
| 781RSK | Rock Set Kit |
| 782LSK | Log Set Kit |
| 785JLN | 785 G4 – Ceramic Burner – NG |
| 785JLP | 785 G4 – Ceramic Burner – LP |
LINERS
| 786LSL V2 | Ledgestone Liner |
| 787RGL | Reflective Glass Liner |
| 788FBL V2 | Fluted Black Liner |
| 789VRL V2 | Victorian Red Brick Liner |
TRIMS
| 790FTV | Floating Trim Kit – 2-1/2” – Vintage Iron |
| 791STB | Square Trim Kit – 5-3/4” – Black |
| 791STV | Square Trim Kit – 5-3/4” – Vintage Iron |
| 792FTV | Floating 3-Sided Trim Kit – 5” – Vintage Iron |
| 792FTZ | Floating 3-Sided Trim Kit – 5” – Bronze |
| 798FFV | Floating 4-Sided Trim Kit – Vintage Iron |
| 798FFZ | Floating 4-Sided Trim Kit – Bronze |
| 799EDN | Edgemont Door Kit – Brushed Nickel Plated |
| 799EDZ | Edgemont Door Kit – Bronze Powder Coated |
ACCESSORIES
| 559CLT | Co-linear Terminal |
| 559SFK | Square Flashing Kit for 559CLT |
| 785RGP | Reflective Glass Panel |
| 793RTB | Riser Kit – 2-1/2” – Black |
| 793RTV | Riser Kit – 2-1/2” – Vintage Iron |
| 794BPB | Backing Plate – 31” x 46”- Black |
| 795CFK V2 | Circulating Fan Kit |
| 796ALP | Adjustable Levelling Platform |
| 1265WSK | Wall Switch Kit |
| GV60PAK | Power Adapter Kit for ValorStat Max |
Fireplace Safety – Use Radiant Heat Safely
Fireplace surfaces, in particular the glass viewing window, are extremely hot during operation and will remain hot for a period of time after the fireplace is turned off. Contact with the hot glass can cause severe burns. Close adult supervision is required if there are young children, or at-risk individuals in the house.
Included with your purchase, a Valor Barrier Screen is recommended at all times. Install an approved aftermarket safety gate to keep toddlers, young children and at-risk individuals a safe distance from the fireplace.
For more important fireplace safety information, please visit our Fireplace Safety page.
Legend G4 Product Specifications
Glass Dimensions
The glass dimensions of the Legend G4 Insert Series (780/785) measure 28″ wide x 18″ in height for a total of 504 square inches.
Model/Fuel
| Model | Gas Type | Input (BTU/HR) | Output Max | |
|---|---|---|---|---|
| High | Low | |||
| 780JN | NG | 30,000 | 6,500 | 21,882 |
| 780JP | LPG | 28,000 | 14,500 | 20,115 |
| 785JN | NG | 33,000 | 16,000 | 23,892 |
| 785JP | LPG | 30,000 | 19,000 | 22,890 |
Dimensions & CAD Drawings
