Description
Efficient Design for Contemporary Living

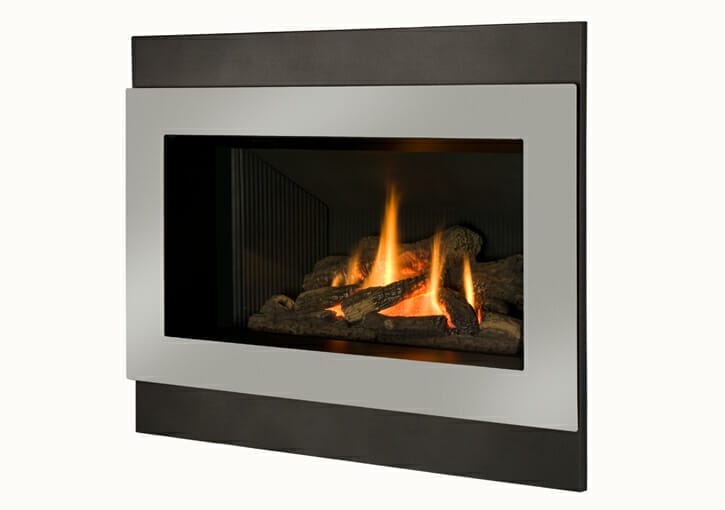

Integrating contemporary design with efficient Valor heat, the H4 is one of our most versatile fireplaces to date. Choose from two different (Landscape and Square) backing plates and one of three designer bezel window trims in Copper, Nickel or Black.
Gallery
Features
[row]
[col span=”1/2″ ]
- Programmable ValorStat Plus remote
Visit the Valor Remote Overview page - Heats without electricity
Operates even during a power outage - Standard safety barrier screen
High quality ceramic glass window - Direct vent installation
Installs practically anywhere you want - Realistic logs & Liners
Ceramic log set and authentic looking firebrick liners
[/col]
[col span=”1/2″ ]
- Insert approved
Install as an Insert fireplace (see manual) - Heats without the need for a fan
A quieter fireplace experience - Modulating Flame
Fire turns down for steady even heat - Aluminized firebox and stainless steel burners
A longer lasting fireplace - ValorComfort
Limited lifetime warranty program
[/col]
[/row]
H4 Fireplace Components
ENGINES
| 650JLN | Log Effect Engine – NG |
| 650JLP | Log Effect Engine – LP |
| 650IRN | Rock Effect Engine – NG |
| 650IRP | Rock Effect Engine – LP |
LINERS
| 618EBL | Enamel Black Liner |
| 620FBL | Fluted Black Liner |
| 621VRL | Valor Red Liner |
| 622LSL | Ledgestone Liner |
SURROUNDS
| 660LSB | Outer Landscape Surround – Black |
| 660LSV | Outer Landscape Surround – Vintage Iron |
| 662SSV | Outer Square Surround – Vintage Iron |
| 661BSB | Inner Bezel Surround – Black |
| 661BSC | Inner Bezel Surround – Copper |
| 661BSN | Inner Bezel Surround – Nickel Powder Coat |
| 661BSP | Inner Bezel Surround – Brushed Nickel |
ACCESSORIES
| 556CLA | Co-linear Adapter – converts co-axial vent to 2 x 3” vent liners (insert) |
| 559CLT | Co-linear Terminal |
| 619RSK | Rock Set Conversion Kit |
| 658DVK | Direct Vent Sidewall Terminal |
| 755CFK | Circulating Fan Kit – variable speed, thermally activated |
| 761DRK | Decorative Rock Kit (addition to 650IR or 619RSK) |
| 817VAK | Vent Adapter Kit |
| 845TG | Terminal Guard (required item in certain applications see install manual) |
| GV60BRK | 1-Hour Shut Down Handset |
| GV60NTK | Non-Thermostat Handset |
Fireplace Safety – Use Radiant Heat Safely
Fireplace surfaces, in particular the glass viewing window, are extremely hot during operation and will remain hot for a period of time after the fireplace is turned off. Contact with the hot glass can cause severe burns. Close adult supervision is required if there are young children, or at-risk individuals in the house.
Included with your purchase, a Valor Barrier Screen is recommended at all times. Install an approved aftermarket safety gate to keep toddlers, young children and at-risk individuals a safe distance from the fireplace.
Glass Dimensions
The glass dimensions of the H4 Series (650) measure 26.5″ wide x 14.75″ in height for a total of 390.88 square inches.
Model/Fuel
| Model | Gas Type | Input (BTU/HR) | Output Max | |
|---|---|---|---|---|
| High | Low | |||
| 650JLN/IRN | NG | 24,000 | 6,500 | 17,506 |
| 650JLP/IRP | LPG | 24,000 | 13,000 | 17,506 |
Dimensions & CAD Drawings
