Description
Quality Casting

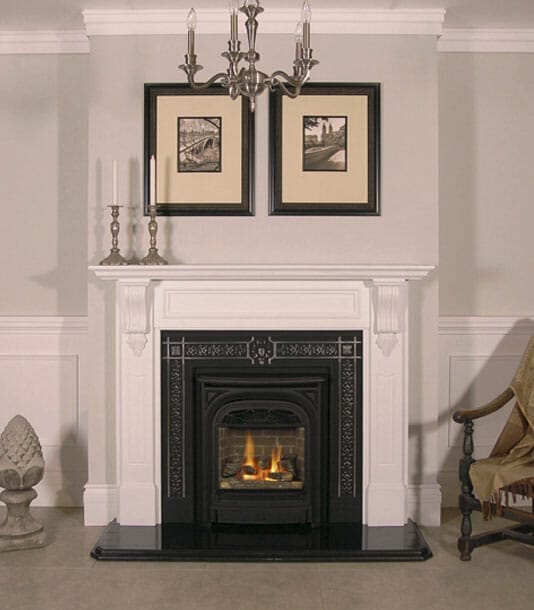

The President Zero Clearance is ideal for building into those smaller intimate spaces, requiring only 11″ depth and 26″ width. The President’s stately vertical format allows the reaching flame to fill the tall viewing window while providing generous radiant and convective heat, ample for a surprisingly large area.
Gallery
Features
[row]
[col span=”1/2″ ]
- Programmable ValorStat Plus remote
Visit the Valor Remote Overview page - Heats without electricity
Operates even during a power outage - Standard safety barrier screen
High quality ceramic glass window - Direct vent installation
Installs practically anywhere you want - Insert approved
Install as an Insert fireplace (see manual)
[/col]
[col span=”1/2″ ]
- Modulating Flame
Fire turns down for steady even heat - Heats without the need for a fan
A quieter fireplace experience - Aluminized firebox and stainless steel burners
A longer lasting fireplace - Realistic logs & Liners
Ceramic log set and authentic looking firebrick liners - ValorComfort
Limited lifetime warranty program
[/col]
[/row]
President Fireplace Components
ENGINES
| 530ILN | Log Effect Engine – NG |
| 530ILP | Log Effect Engine – LP |
| 530ICN | Coal Effect Engine – NG |
| 530ICP | Coal Effect Engine – LP |
| 530IRN | Rock Effect Engine – LP |
| 530IRP | Rock Effect Engine – LP |
FRONTS
| 536CXB | President Zero Clearance Cast Front – Black |
ACCESSORIES
| 555CFK | Circulation Fan Kit |
| 556CLA | Co-linear Adapter – converts co-axial vent to 2 x 3” vent liners (insert) |
| 559CLT | Co-linear Terminal |
| 559SFK | Square Flashing Kit for 559CLT |
| 567FGP | Firebox Grille Panel – roof panel (530ILN/P or 530IRN/P only) |
| 568RSK | Rock Set Conversion Kit |
| 580EBL | Enamel Black Liner |
| 658DVK | Direct Vent Sidewall Terminal |
| 817VAK | Vent Adapter Kit |
| 845TG | Terminal Guard (required item in certain applications see install manual) |
| 1265WSK | Wall Switch Kit |
| 3336CP | Closure Plate (black) – 33”H x 36”W (for insert applications) |
| GV60BRK | 1-Hour Shut Down Handset |
| GV60NTK | Non-Thermostat Handset |
Fireplace Safety – Use Radiant Heat Safely
Fireplace surfaces, in particular the glass viewing window, are extremely hot during operation and will remain hot for a period of time after the fireplace is turned off. Contact with the hot glass can cause severe burns. Close adult supervision is required if there are young children, or at-risk individuals in the house.
Included with your purchase, a Valor Barrier Screen is recommended at all times. Install an approved aftermarket safety gate to keep toddlers, young children and at-risk individuals a safe distance from the fireplace.
For more important fireplace safety information, please visit our Fireplace Safety page.
Ventana Product Specifications
Glass Dimensions
The glass dimensions of the Portrait Series (530) measure 16.75″ wide x 15.375″ in height for a total of 257.53 square inches.
Model/Fuel
| Model | Gas Type | Fuel Bed Style | Input (BTU/HR) | Output Max | |
|---|---|---|---|---|---|
| High | Low | ||||
| 530ILN | NG | Log | 20,500 | 6,500 | 15,250 |
| 530ILP | LPG | Log | 19,000 | 12,500 | 14,160 |
| 530ICN | NG | Coal | 20,500 | 6,500 | 15,250 |
| 530ICP | LPG | Coal | 19,000 | 12,500 | 14,160 |
Dimensions & CAD Drawings
