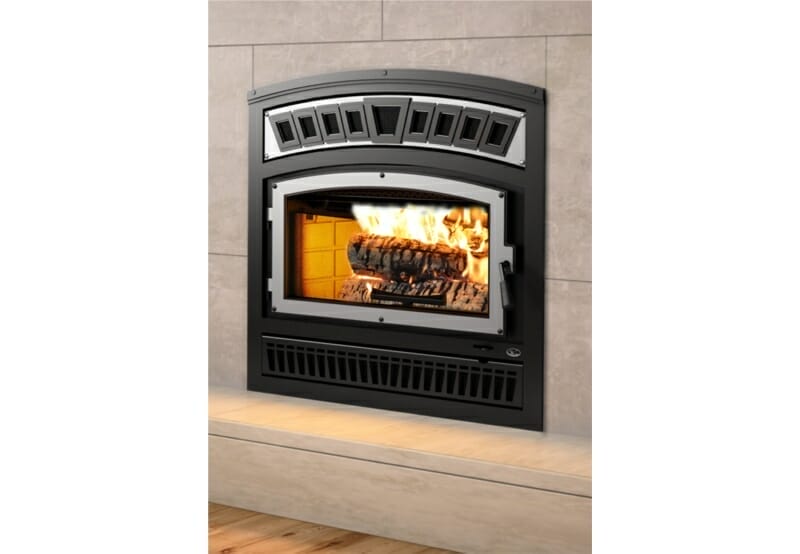

Lafayette, the French officer and hero of the American Revolution, inspired us to create our newest high efficiency fireplace. As the great general, Valcourt used its tactical skills in developing the Lafayette fireplace so it provides home heating with superb efficiency and elegance. Further to offering a revolutionary look, Lafayette meets the highest EPA emissions requirements, making it the fireplace of choice for the new generation of consumers who want to use wood as a renewable and clean source of heat.
Features
- Model # : FP10
- High-efficiency EPA certified fireplace
- Recommended Heating Area (sq. ft.) : 500 – 2100
- Premium quality blower with variable speed control included (CFM) : 2 x 75
- Color : Metallic black
- Glass air-wash system
- Optimum efficiency : 77%
- Emissions : 4.4 g/h
- Stainless-steel secondary-air system improving gas combustion
- Minimum burn rate : < 1kg/h (< 2.2 lb/h)
- Moulded refractory bricks
- Recommended chimney diameter : 6″ / 7″
- May qualify for some government incentives.
- Tested or/and listed as per applicable standards by : Intertek
Tech Specs
Firebox dimensions (Width): 20 7/8″
Firebox dimensions (Depth): 13″
Height – Overall : 47 1/8″
Width – Overall: 37 7/8″
Depth – Overall: 29 5/8″
Door opening dimensions (Height): 10 3/4″
Door opening dimensions (Width): 25 1/2″
Maximum output – seasoned cord wood: 75,000 BTU/h
Maximum output – EPA test wood: 30,450 BTU/h
Minimum chimney height (feet): 15
Maximum log length: 21″
Weight: 391 lb (177 kg)
Log positioning: Over width
Centre line of flue outlet to the back: 10 1/8″
Centre line of flue outlet to the side: 18 7/8″
Canadian Standard (emissions): CSA B415.1
USA standard (emissions): EPA Method 28
Canadian Standard (safety): ULC S610
USA standard (safety): UL 127
Type of Chimney (°F): 2100
Type of Fuel: Wood
Type of Door: Single, glass with steel frame
Glass Type: Ceramic glass
Firebox volume (cu. ft.): 2.5
Glass Surface: 12 5/8″ x 24 3/8″
Recommended Heating Area (sq. ft.): 500 – 2100
Optimum efficiency: 77%
Emissions: 4.4 g/h
Minimum burn rate: < 1kg/h (< 2.2 lb/h)
Recommended chimney diameter: 6" / 7"
Warranty: Limited lifetime
Tested or/and listed as per applicable standards by: Intertek
