Description

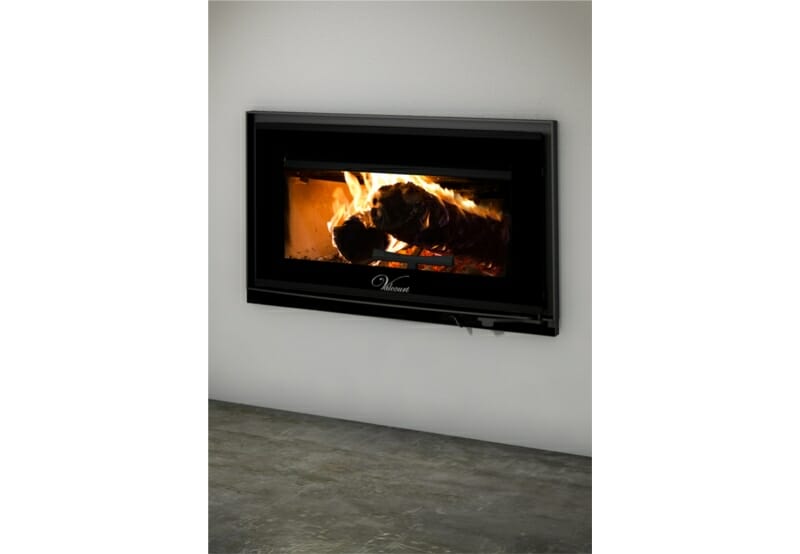

With its straight lines, simplistic shape and neutral color, the FP12 Mundo brings a gust of modernism into your home. It harmonizes both functionality and comfort perfectly. Moreover, with its extra large clean face glass, the Mundo offers a view on the fire that is unmatched in the industry. This ecological fireplace is EPA certified with an emissions rate of 4.4 g/h and produces up to 75,000 BTU/h. The heat distribution kit available with the Mundo will help you harness all the power from this incredible fireplace while keeping in mind the contemporary lines of your décor. The most serious of users will also want to install the forced air kit which will allow for better and more efficient heat transfers to a room further from the fireplace.
Features
- Model # : FP12
- High-efficiency EPA certified fireplace
- Recommended Heating Area (sq. ft.) : 500 – 2100
- Color : Metallic black
- Glass air-wash system
- Optimum efficiency : 77%
- Emissions : 4.4 g/h
- Baffle : High heat-resistant C-cast
- Stainless-steel secondary-air system improving gas combustion
- Minimum burn rate : < 1kg/h (< 2.2 lb/h)
- Cast iron andirons
- Moulded refractory bricks
- Recommended chimney diameter : 6″
- Tested or/and listed as per applicable standards by : Intertek
Tech Specs
Firebox dimensions (Width): 20 1/4″
Firebox dimensions (Depth) 12 7/8″
Height – Overall : 47 1/8″
Width – Overall: 37 3/4″
Depth – Overall: 27 3/4″
Door opening dimensions (Height): 10 1/4″
Door opening dimensions (Width): 25 1/2″
Maximum output – seasoned cord wood: 75,000
Maximum output – EPA test wood: 30,450
Maximum log length: 21″
Weight: 429 lb (195 Kg)
Log positioning: Over width
Centre line of flue outlet to the back: 10 1/8″
Centre line of flue outlet to the back: 10 1/8″
Centre line of flue outlet to the side: 18 7/8″
Centre line of flue outlet to the side: 18 7/8″
Canadian Standard (emissions): CSA B415.1
USA standard (emissions): EPA Method 28
Canadian Standard (safety): ULC-S610
USA standard (safety): UL 127
Type of Chimney (°F): 2100
Type of Fuel: Wood
Glass Type: Ceramic glass
Firebox volume (cu. ft.): 2.5 pi. cu.
Glass Surface: 11 1/4″ x 25 1/8″
Recommended Heating Area (sq. ft.): 500 – 2100
Optimum efficiency: 77%
Emissions: 4.4 g/h
Baffle: High heat-resistant C-cast
Minimum burn rate: < 1kg/h (< 2.2 lb/h)
Recommended chimney diameter: 6"
